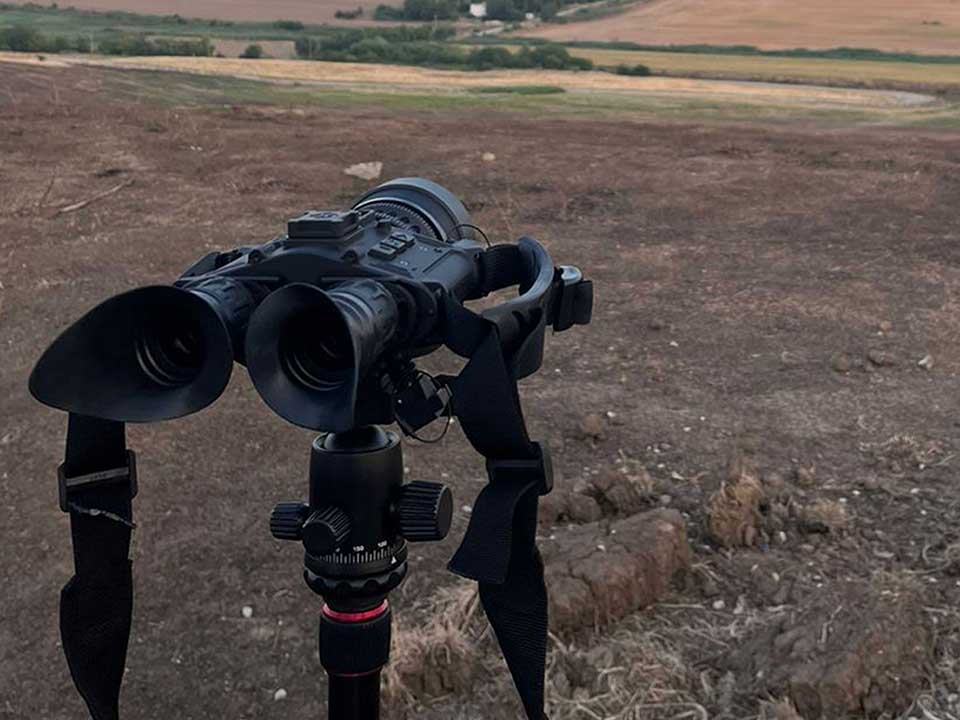

BloodHound

Long Range Thermal Imaging Binocular (Uncooled)

Description

Bloodhound is a long range handheld thermal imaging binocular binocular. It is built on Tonbo’s state of the art high resolution shutterless TUVE thermal imaging core providing outstanding sensitivity and excellent image quality.

Bloodhound employs dual fov or a single fov optics enabling very long range detection with increased situational awareness.

A 640×480 micro bolometer array on a 17μm pitch offers unprecedented thermal imagery for tactical surveillance operations. Integrated with GPS, Compass and an LRF (Optional) it enables target acquisition capabilities.

Bloodhound is extremely light weight for its long range detection capability. It can detect a NATO sized target at upto 3km.

Update: Now also available with 12um pixel pitch

The external I/O port is compatible for real time wireless streaming of the video.

Bloodhound places military, para-military and law enforcement professionals at the forefront of technology. Enabling target discrimination and recognition regardless of weather conditions and with no necessary light.

Bloodhound is ideal for operation on all borders and in all battlefield environments whether air, sea or land.

Capabilities

  •  Integrated
    • Uncooled Shutterless Thermal Imager
    • Laser Range Finder (Optional)
    • GPS
    • Inertial sensors (gyro, accelerometer, compass)
    • Laser Pointer (Optional)
  • Video / Snapshot Recording
  • Multiple Reticle types crosshair, mil-dot, SVD for passive ranging
  • Multiple language support
  • Target Geo Referencing (Option LRF)
  • Extended Autonomy of more than 8hrs
  • Advanced Communication Interfaces
  • Video Streaming over wireless to android based phone / tablet / helmet mounted heads-up display
  • External Remote keypad for ease of use
  • Remote Control with a pan/tilt and console package



Applications

  • Law Enforcement
  • Observation and Target Location Acquisition
  • Intelligence Gathering
  • Border / Coastal Surveillance
