Minion
Enhanced Driver Vision

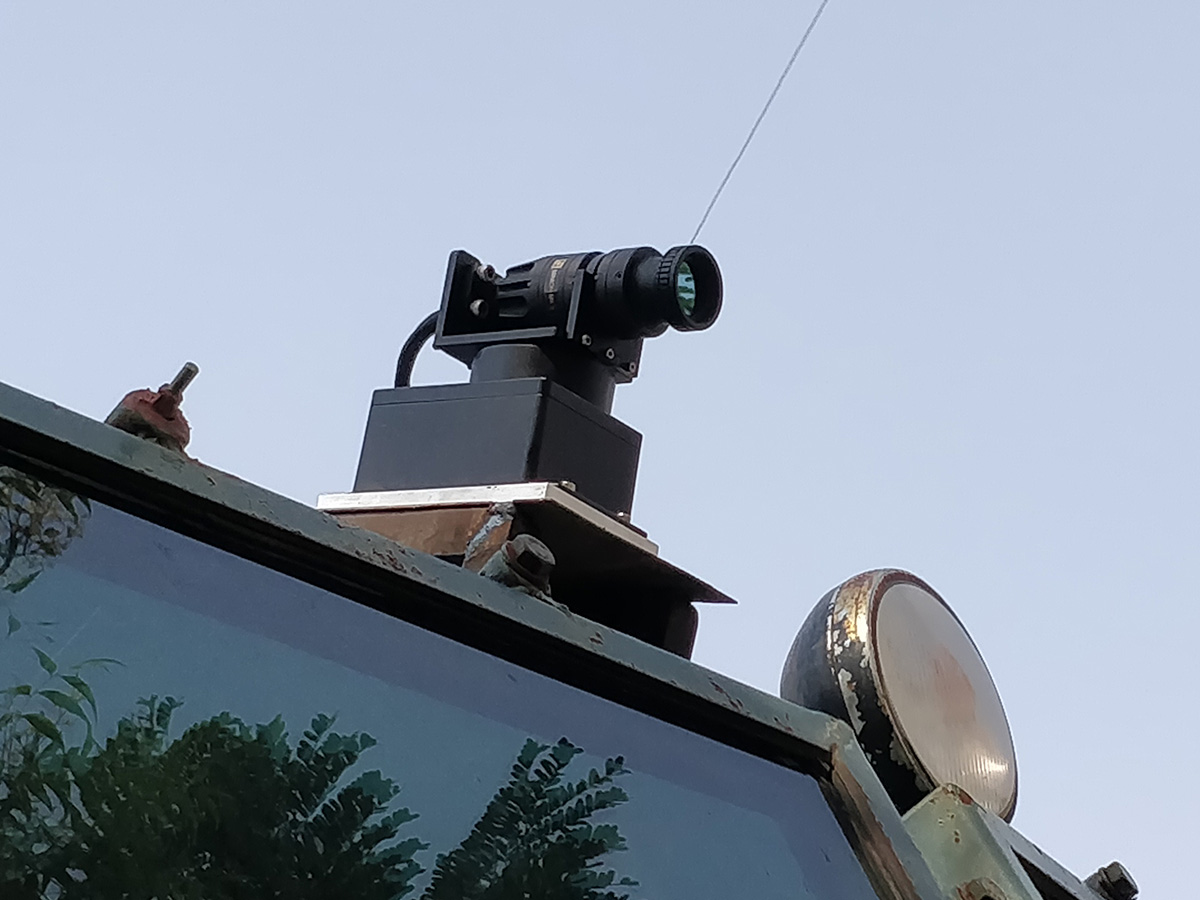

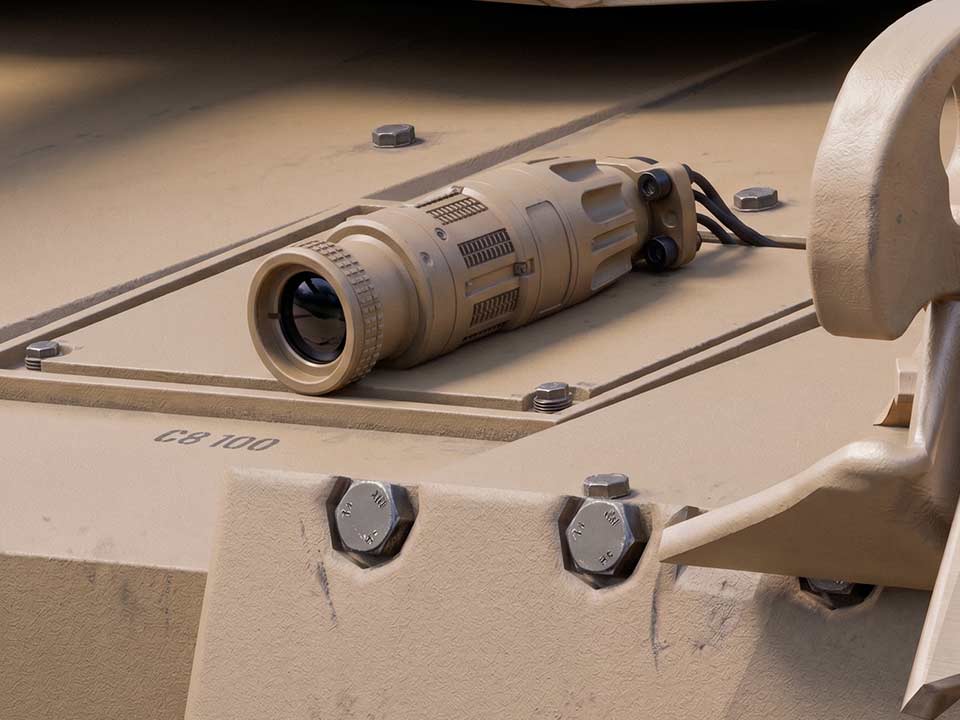

Minion is a compact rugged, shutterless, low power rugged thermal imaging camera for driver vision enhancement and situational awareness for land and naval requirements.
With advanced thermal image processing, it provides crisp thermal images at high frame rates. It does not require any physical shutter for NUC correction at any point, even with changing environmental conditions. With no shutter, the images never freeze making it an ideal solution for situational awareness and driver vision applications. Absence of shutter also eliminates the need for a motor, the first point of failure in harsh environments.
It features a high resolution 640×480 micro-bolometer array on a 17-micron pitch, it offers unprecedented thermal imaging for military, security, aviation and marine safety applications at cost-effective prices. Minion finds its applications across a range of deployments ranging from driver vision enhancement, panoramic surveillance.
Note: Now available in 12um pixel pitch
The module is available as fully rugged as per MIL-STD-810G, nitrogen purged and sealed for direct use in harsh environment.
Capabilities
-
- Uncooled Thermal Imager
- Wide Field of View – up to 45º – 100º FOV
- Motorised Pan Motion for Wider Field of Regard – 180º
- Integrated 8” Rugged Multi function Display
- Powered by vehicle battery
- Complete Installation Kit provided
Applications
- Enhanced Driver vision for APCs
- Situational Awareness for Land Vechicles
- Enhanced Night Vision for Naval Vessels
