Magnus

Description

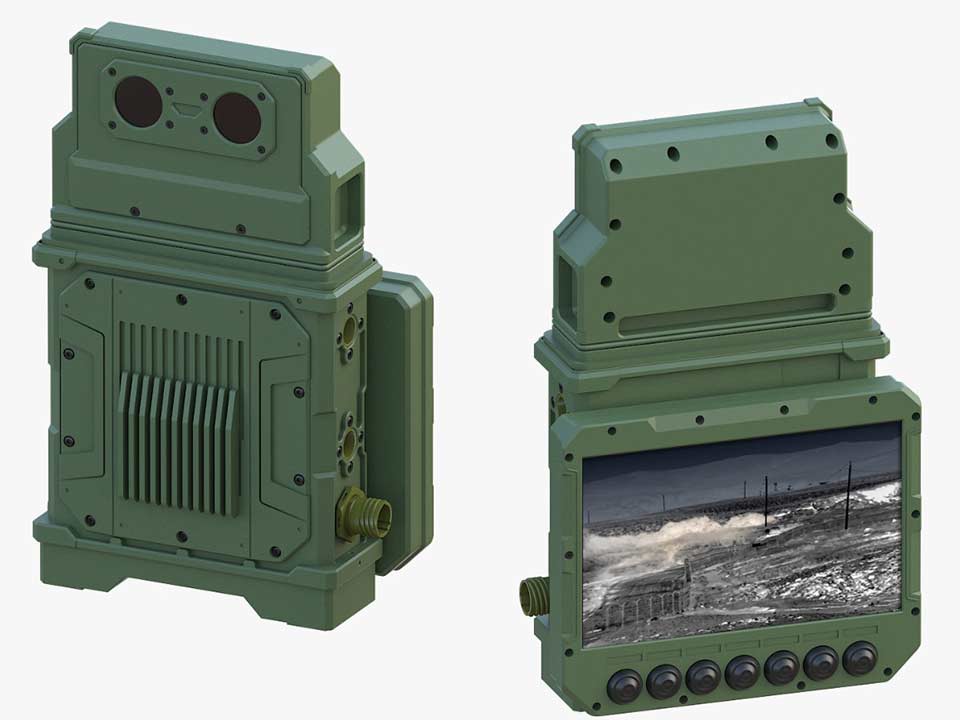

Magnus 90 is an advanced digital day night periscope with sensor fusion and wide field of view for closed hatch armoured vehicles.  It can be adapted to all combat vehicles. Its a single LRU system with no requirement for processing / power units, making it line replaceable with no physical mechanical electrical changes required to the vehicle.

A driver can instantly remove and replace it with the traditional periscope.

It consists of an array of CCD/CMOS and uncooled LWIR sensors. Multiple sensors of same type are used to increase the field of view by realtime seamless stitching while maintaining the NATO target recognition at >500m and it can also in an optional configuration can create stereo effect for 3D visualisation in external Augmented Reality and Virtual Reality displays.

LWIR imagers are digitally fused in real time with the day sensors for enhanced driver vision. It also has an integrated advanced high resolution digital display system made of complex optical elements providing stress free bi-ocular and magnified viewing at an optimum distance from the user. The magnifying optics ensures a large image is produced at safe distance from the user in a space constraint environment.

It’s designed to survive harsh environments and meets all military standards.

Capabilities

• Single Line Replaceable Unit
• Sensor Package
  • Multiple Day Imagers
  • Multiple LWIR Uncooled Shutterless TI
• Realtime Video Processing
  • Video Enhancement
  • Sensor Fusion
  • Video Stitching
• Integrated Biocular Display
  • High Magnified Image Projected Away from Driver
  • Relaxed View for Driver
  • Large Eye Relief
  • Parallax Free
  • Special AR Coatings
• Integrated Camera Controls
• Video Streaming to Commander / Gunner’s Display
• Designed form and fit compatible for your AFV, APV, MBT

Applications

• APV, AFV, MBT Day / Night Periscope
• Enhanced Driver Vision
• Enhanced Situational Awareness
